Compact Stability for Tight Spaces

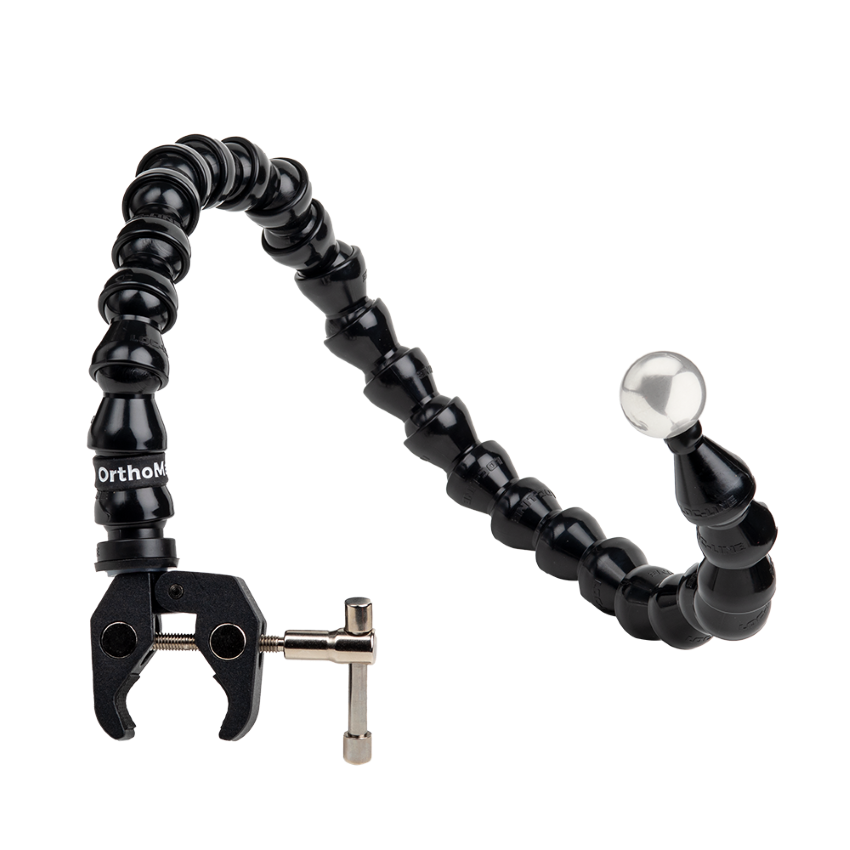

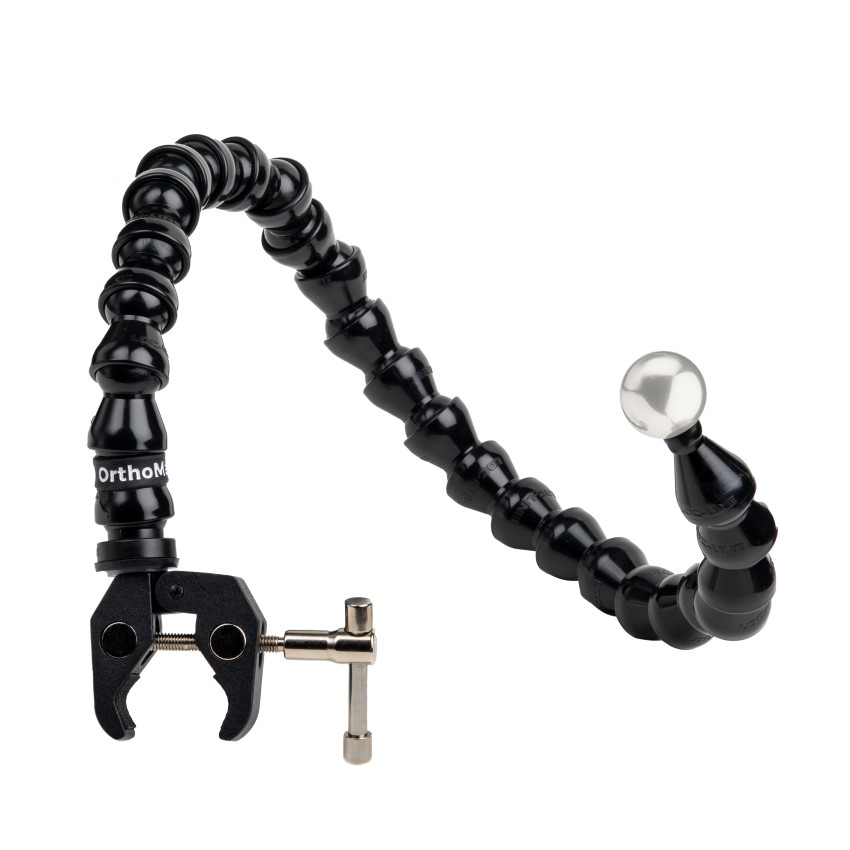

When your mounting point is small, the OM-1012 is the right tool for the job. This small clamp base is designed to offer the same secure, reliable reference point as our larger models but in a footprint that fits exactly where you need it, especially on thinner railings and grab handles.
Full Specifications
- Base type: Small clamp base
- Capacity: Flat or round surfaces up to 2″ thick; optimized for round surfaces up to 1.5″
- Arm length: 24″
- Arm weight: 7.5 oz
- Ball: 25.4 mm (1″) solid 316 stainless steel
- Warranty: 1 year against manufacturer defects
- Country of origin: Designed and assembled in the USA
Common Clinical Applications
- Equipment-Integrated Imaging: Ideal for attaching to thinner equipment rails or grab bars where a large clamp would be too bulky.
- Custom Setup Solutions: Perfect for facilities with unique hardware layouts that require a compact mounting footprint.
- Flexible Positioning: Allows for quick, secure attachment to varied, smaller clinical hardware found in busy imaging suites.
Why a 25.4 mm Calibration Sphere?
Surgical templating software needs a known reference object in the image to calculate magnification. A 1-inch (25.4 mm) solid sphere is the standard because it presents the same diameter regardless of imaging angle — unlike a disc or coin, which can appear elliptical if tilted. Position it at the anatomical plane of the joint, and the software does the rest.
Why Choose OrthoMark?
OrthoMark has been the trusted name in surgical magnification markers for over 20 years. Our commitment to solid 316 stainless steel calibration spheres and durable, American-made mounts ensures that your templating software receives an undistorted, reliable reference every single time, regardless of the environment.
Need a Different Mount?
Every OrthoMark uses the same 25.4 mm calibration ball and adjustable arm. If the small clamp isn’t the right fit for your facility, check out our other options:
