Reliable Suction Power

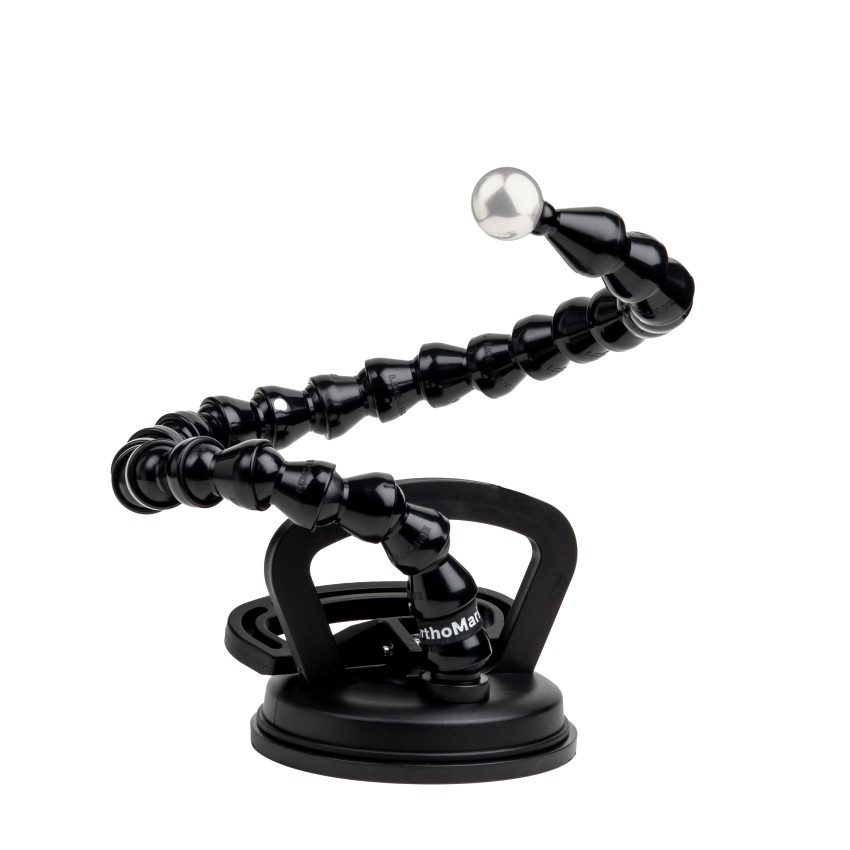

The OM-1003 is the ideal solution for facilities that require a secure mount but cannot use adhesives or magnets. Designed for smooth, non-porous surfaces, this unit provides the same 24″ of fully adjustable reach as our flagship model, giving you maximum flexibility for perfect marker placement.
Full Specifications
- Base type: Suction cup
- Surface: Smooth, non-porous surfaces. Note: As with all rubberized mounting materials, we recommend periodic cleaning of both the suction cup and the mounting surface to maintain optimal grip and prevent surface residue.
- Arm length: 24″
- Arm weight: 7.5 oz
- Ball: 25.4 mm (1″) solid 316 stainless steel
- Warranty: 1 year against manufacturer defects
- Country of origin: Designed and assembled in the USA
Note: This unit is not intended for use on dimpled, rough, or “sandy” surfaces. For those applications, please consider our lever-action models like the OM-1009.
Common Clinical Applications
- General Radiology: Securely attaches to the smooth surfaces of X-ray tables or wall bucky housings.
- OR Imaging: Attaches to smooth, non-porous equipment surfaces for quick, precise calibration.
- Veterinary Practice: Perfect for smooth table setups where magnetic or adhesive mounts aren’t feasible.
Why a 25.4 mm Calibration Sphere?
Surgical templating software needs a known reference object in the image to calculate magnification. A 1-inch (25.4 mm) solid sphere is the standard because it presents the same diameter regardless of imaging angle — unlike a disc or coin, which can appear elliptical if tilted. Position it at the anatomical plane of the joint, and the software does the rest.
Why Choose OrthoMark?
OrthoMark has been the trusted name in surgical magnification markers for over 20 years. Our commitment to solid 316 stainless steel calibration spheres and durable, American-made mounts ensures that your templating software receives an undistorted, reliable reference every single time, regardless of the environment.
Need a Different Mount?
Every OrthoMark uses the same 25.4 mm calibration ball and adjustable arm. If your surface isn’t smooth enough for this suction model, check out our other options:
